Jain DripKit.. More Crop Per Drop®
Jain Irrigations journey of “working with farmers” continues with a focus on small farmers. Among the small farmers too, majority are without an independent water-source. And their land-holding is less than 1 acre. Such tiny holdings are also fragmented & located in more than one place, independent water-source and electricity is also not available to these farmers.
“Jain DripKit” will address all these constraints and will empower the small farmers with a scientific, durable and simple-to-operate Irrigation System. The most modern Micro Irrigation System:
"Drip Irrigation System which operates on gravity pressure".
Jain DripKit helps to maintain favourable soil moisture conditions to the plants which results in good growth & bumper yields.
|
Advantages of "Jain DripKit"
- No electricity required, operates on gravity.
- Easy to install. Do it yourself.
- Portable system, can be easily shifted.
- Affordable drip systems for small farmers.
- Ideal for tiny & small farmers.
- All items are supplied in one box. Easy to carry.
|
Applications of "Jain DripKit"
- Mainly suitable for cultivation of vegetables. Can be used for cereals, pulses, cotton and other closely spaced crops.
- Can be used for irrigation in open fields, Green house/ Net house and nurseries.
- Suitable for Kitchen Gardens and also Himalayan / Hilly (Terrains) where land holding is very small.
- Useful as a survival irrigation tool in rainfed area or water scarcity region or when there is a prolonged gap between rains & / or electricity is not available.
|
|
|
Specifications
- Available in six models: 30m², 100m², 250m², 500m², 1000m² & 2000m²
- Available in 3 types of lnline tubing options:
- Thickwall - 12mm J-Turbo Aqura® (JTA 1.6 lph, 30 cm spacing & 0.6-0.7 mm thickness)
- Thinwall - 16mm Jain Turbo Slim® (JTS 1.6lph, 30 cm spacing & 6 mil (150 micron))
- Thinwall - 16mm Chapin™ Deluxe (0.95 lph, 20cm & 6mil (150 micron))
|
Head Vs Discharge
| * Head (m) |
Discharge (lph) |
| JTA 1.6 lph |
Chapin 0.95 lph |
JTS 1.6 lph |
| 1.5 |
0.56 |
0.34 |
0.56 |
| 2.0 |
0.66 |
0.40 |
0.66 |
| 2.5 |
0.75 |
0.45 |
0.75 |
| 3.0 |
0.83 |
0.50 |
0.83 |
| 4.0 |
0.97 |
0.58 |
0.97 |
|
* Head denotes pressure head at the dripper and not the tank height.
|
|
|
|

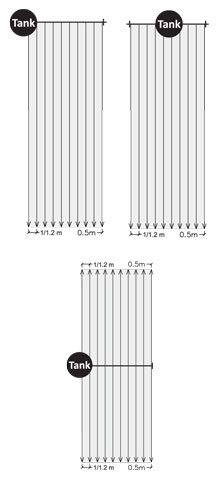

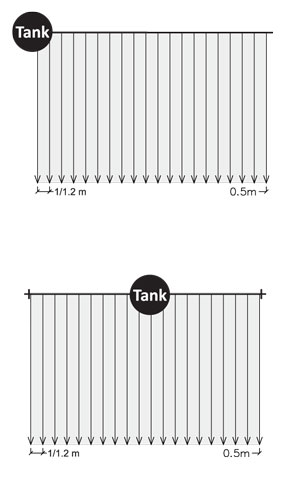

Layout Options for Jain Dripkit
Note: Layout Samples not to scale.
Above layouts are only for example. There can be several other layouts possible.
|
Tank capacity determination as per height of tank & type of tube
| Tube Details |
Tank Height
(m) |
Water Required (lph) Area (m²) |
| 30 |
100 |
250 |
500 |
1000 |
2000 |
| J - Turbo Aqura |
1.5 |
- |
- |
469.7 |
939.3 |
- |
- |
| 2.0 |
- |
- |
550.2 |
1100.4 |
- |
- |
| 2.5 |
- |
- |
622.0 |
1244.0 |
1036.7 |
2073.4 |
| 3.0 |
- |
- |
687.6 |
1375.3 |
1146.1 |
2292.1 |
| 4.0 |
- |
- |
805.5 |
1611.0 |
1342.5 |
2685.0 |
| J - Turbo Aqura |
1.5 |
- |
- |
469.7 |
939.3 |
- |
- |
| 2.0 |
- |
- |
550.2 |
1100.4 |
- |
- |
| 2.5 |
- |
- |
622.0 |
1244.0 |
1036.7 |
2073.4 |
| 3.0 |
- |
- |
687.6 |
1375.3 |
1146.1 |
2292.1 |
| 4.0 |
- |
- |
805.5 |
1611.0 |
1342.5 |
2685.0 |
| Chapin Deluxe Drip Tape |
1.5 |
50.7 |
169.1 |
422.7 |
845.4 |
- |
- |
| 2.0 |
59.4 |
198.1 |
495.2 |
990.3 |
- |
- |
| 2.5 |
67.2 |
223.9 |
559.8 |
1119.6 |
933.0 |
1866.1 |
| 3.0 |
74.3 |
247.5 |
618.9 |
1237.7 |
1031.4 |
2062.9 |
| 4.0 |
87.0 |
290.0 |
725.0 |
1449.9 |
1208.3 |
2416.5 |
| Valve Operation |
|
Total System |
Total System |
Total System |
Total System |
One Valve at a time |
One Valve at a time |
|
NOTE
- Tank height is mentioned at the bottom of the Tank.
- Water requirement given is for one hour operation of Jain Dripkit. You need to fill up the tank frequently according to the water requirement of the crop.
- Up to 500 m² area lateral spacing considered as 1m & for 1000m² & 2000 m² area lateral spacing considered as 1.2m.
- For 1000 m² & 2000 m² DripKit, minimum tank height recommendation is 2.5 m.
|
Ordering Guide for Jain DripKit
| Area to be Covered (m²) |
Code |
Item Description |
| 30 |
JDKBC160966030 |
Jain DripKit BT 30 m² |
| 100 |
JDKC160966100 |
DRIPKIT CHAPIN 16 MM 0.95 LPH 6MIL 100 m² |
| 250 |
JDKS159166250 |
DRIPKIT JAIN TURBO SLIM 15.9 ID 1.6 LPH 6MIL 250 m² |
| JDKC160966250 |
DRIPKIT CHAPIN 16 MM 0.95 LPH 6MIL 250 m² |
| JDKA12162250 |
DRIPKIT JAIN TURBO AQURA 12 MM 1.6LPH CL2 250 m² |
| 500 |
JDKS159166500 |
DRIPKIT JAIN TURBO SLIM 15.9 ID 1.6 LPH 6MIL 500 m² |
| JDKC160966500 |
DRIPKIT CHAPIN 16 MM 0.95 LPH 6MIL 500 m² |
| JDKA12162500 |
DRIPKIT JAIN TURBO AQURA 12 MM 1.6LPH CL2 500 m² |
| 1000 |
JDKS1591661000 |
DRIPKIT JAIN TURBO SLIM 15.9 ID 1.6 LPH 6MIL 1000 m² |
| JDKC1609661000 |
DRIPKIT CHAPIN 16 MM 0.95 LPH 6MIL 1000 m² |
| JDKA121621000 |
DRIPKIT JAIN TURBO AQURA 12 MM 1.6LPH CL2 1000 m² |
| 2000 |
JDKS1591662000 |
DRIPKIT JAIN TURBO SLIM 15.9 ID 1.6 LPH 6MIL 2000 m² |
| JDKC1609662000 |
DRIPKIT CHAPIN 16 MM 0.95 LPH 6MIL 2000 m² |
| JDKA121622000 |
DRIPKIT JAIN TURBO AQURA 12 MM 1.6LPH CL2 2000 m² |
|
| |
Pump options for Jain Drip kit
|
|
Drip Kit with Solar Pump
A revolution is taking place in how water is being pumped in remote locations beyond the reach of electric power lines. Solar power has proven to be an ideal way to lift water for drinking, sanitation, stock tanks, and irrigation.
|
|
Drip Kit with Foot Pump
Foot Pump is a foot operated water lifting device that can pump water to fill tanks to irrigate small plots of small land holders.
|
|
Drip Kit with Hydraulic Ram Pump
Pumping water without use of electricity especially in hilly areas. The Hydraulic Ram uses the force of flowing water to pump water uphill to desired point without using any additional source of energy. What you need is only suitable site location for Hydraulic Ram Pump.
|
|
| |
|

|
